Column Couplers for Joining Guard and Other HPLC Columns

Precision Column Couplers for Low‑Dead‑Volume HPLC Connections

MICROSOLV™ column couplers are designed to reliably connect HPLC columns to other HPLC columns, including guard columns, using standard 10‑32 threaded ports. These precision PEEK column couplers allow chromatographers to place columns in series with confidence, supporting two‑dimensional HPLC (2D‑HPLC) and other multi‑column configurations where minimizing dead volume is critical.

Each side of the coupler independently adjusts and bottoms out inside the column port, ensuring optimal alignment and minimal internal dead volume at the connection point. This design helps preserve chromatographic efficiency, peak shape, and system performance.

Designed for Flexible, Universal Column Connections

These column couplers—also commonly referred to as column connectors—are engineered to work with a wide range of HPLC columns and guard columns. The internal connecting tubing can move laterally within the coupler body, allowing for pilot depth adjustment. This feature makes the coupler nearly universal across different column manufacturers and designs.

The connecting tubing is ARE‑brand Ultra‑T™ tubing, manufactured with exceptionally tight tolerances and high internal concentricity. This level of precision is essential for maintaining consistent HPLC flow paths and reducing dispersion at column‑to‑column interfaces.

Optimized for HPLC Performance

Key benefits include:

• Compatible with any HPLC column using 10‑32 ports

• Ideal for guard column to analytical column connections

• Suitable for columns placed in series and 2D‑HPLC setups

• Independent adjustment on each side for precise port engagement

• Low dead volume design to protect separation efficiency

• Manufactured from chemically resistant PEEK

• Cost‑effective alternative to metal column connectors

Color‑Coded Column Couplers for Easy Identification

Each column coupler is color‑coded by internal diameter (ID), making it easy to select the correct flow path for your application and minimize flow mismatch.

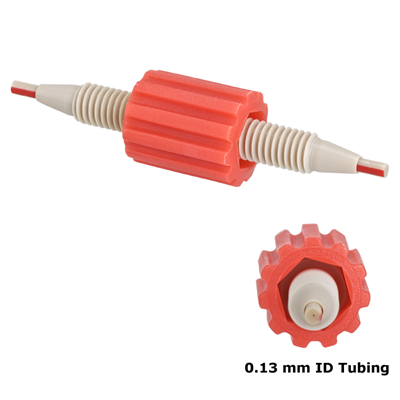

• Red – 0.005 in / 0.13 mm ID

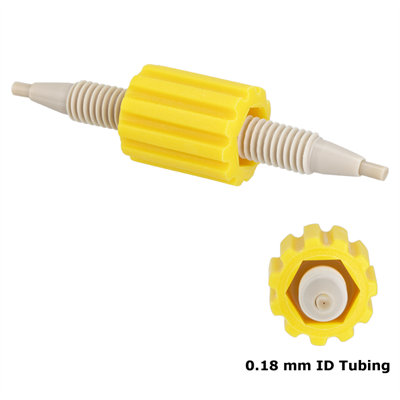

• Yellow – 0.007 in / 0.18 mm ID

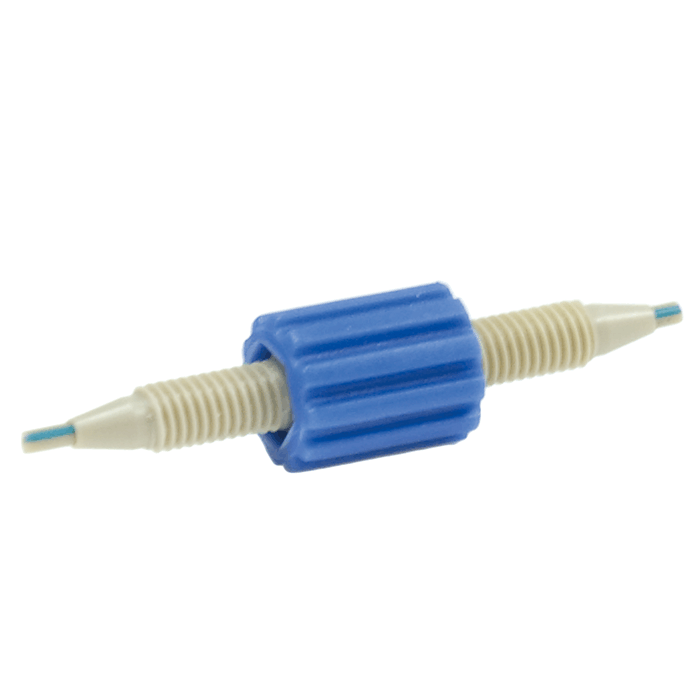

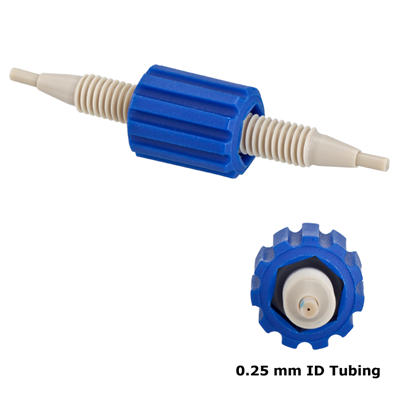

• Blue – 0.010 in / 0.25 mm ID

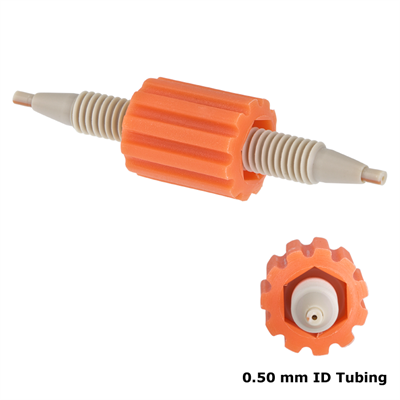

• Orange – 0.020 in / 0.50 mm ID

Color coding reduces setup errors and simplifies method transfer and system maintenance.

Typical Applications

• Guard column to analytical column connections

• Analytical column to analytical column connections

• Two‑dimensional HPLC (2D‑HPLC)

• Column switching and method development

• Low‑volume, high‑efficiency chromatographic systems

Related Products and Resources

For additional connection options, see our full selection of HPLC tubing unions, adapters, and connectors.

👉 Explore HPLC tubing unions, adapters, and column connectors

• Low Cost

• Made with Ultra-T Tubing for greater concentricity

• Color Coded for ID

  • Red - 0.005 inch / 0.13 mm ID

  • Yellow - 0.007 inch / 0.18mm ID

  • Blue - 0.010 inch / 0.25 mm ID

  • Orange - 0.020 inch / 0.5 mm ID
